INTU FR BRICK

Intumescent fire stop brick

Product description

The INTU FR BRICK product is a polyurethane-based intumescent block for fire protection. In the event of a fire, it expands to form a barrier that prevents the spread of flames and smoke, maintaining the partition’s integrity and insulation for up to EI 120.

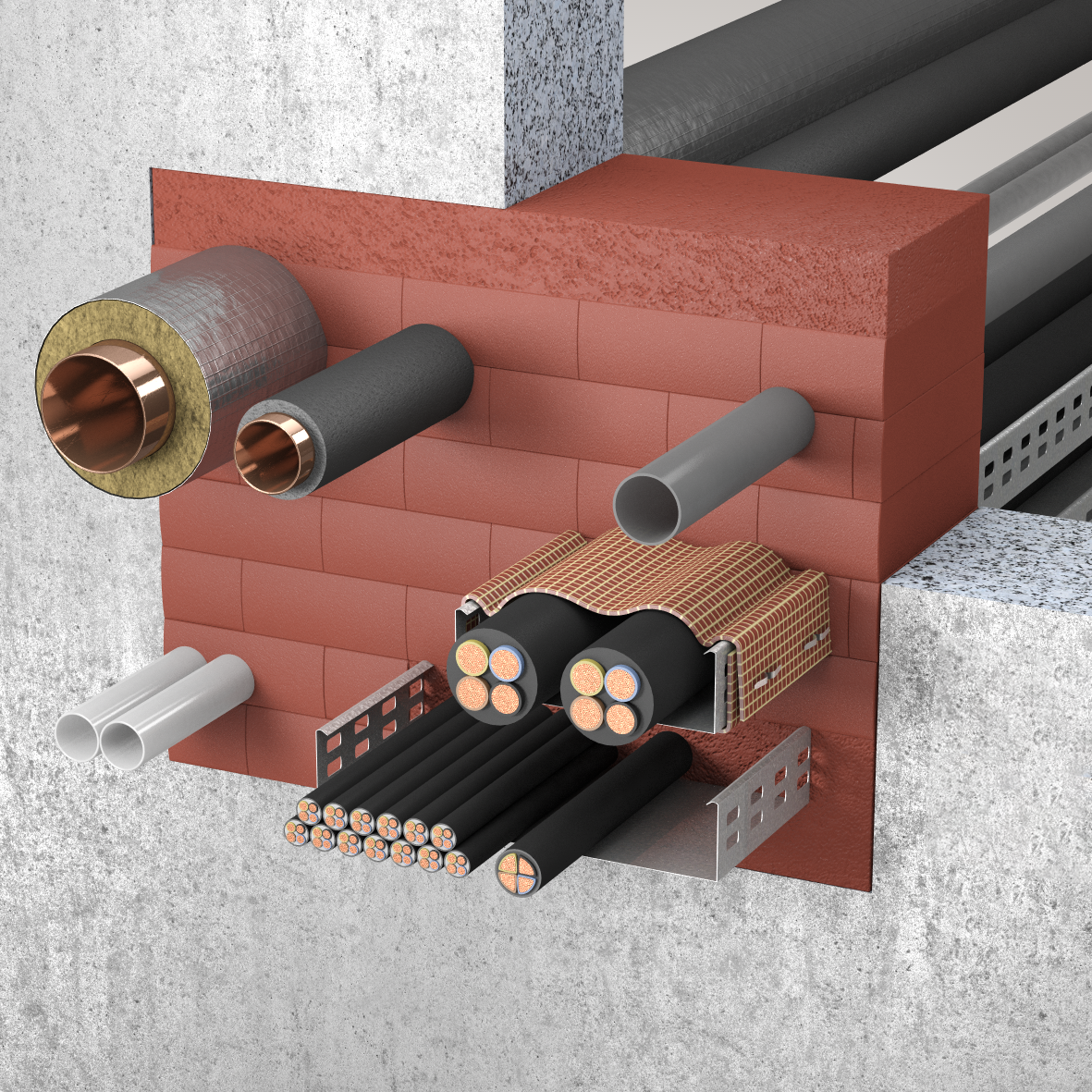

The polyurethane-based intumescent block INTU FR BRICK is recommended for large penetration seals of cable or mixed penetrations. The blocks should be laid in layers (similar to mansonry—with vertical offset joints staggered) so that they fit into the opening (installation should be performed according to the Technical Data Sheet). Near service area, INTU FR BRICK should be cut to the required size, and any remaining gaps filled with INTU FR FOAM 2K. Both products can be used interchangeably to ensure the proper shape of the fire penetration.

Fire resistance class up to EI 120
Cables and pipes fire protection
For walls and floors
Quick installation
High degree of swelling
Acoustic insulation 49 dB

Documents

Compliance

European Technical Assessment: ETA-10/0431
Declaration of performance: DoPZZ230-2018070701
CE Certificate of Conformity: 0761-CPR-0187
Acoustic insulation from airborne sounds: Rw = 49 dB

Availability

Product	Type	Delivery form	Article number	Delivery group
INTU FR BRICK	Block 200 x 144 x 60 mm	1 pc	3220014460	A

Complementary product	Type	Delivery form	Article number
INTU FR BANDAGE	Roll 150 mm x 5 m	1 pc	3315050000

Application

The INTU FR BRICK fire protection block is designed to protect installation penetrations, cables (and cable supporting structures), cable bundles, metal pipes, plastic pipes, Tubolit®Split copper pipe bundles. The polyurethane-based intumescent block INTU FR BRICK is used for temporary or permanent fire resistance of flexible walls, rigid walls and rigid floors.

To increase the fire resistance of cables to EI 120, it may be necessary to use INTU FR BANDAGE. This bandage, as a complementary product to INTU FR BRICK and INTU FR FOAM 2K, is used for wrapping cables when it is needed.

Flexible walls

The wall should be at least 94 mm thickness (made with a facing of at least two gypsum boards on both sides).

Rigid walls

The wall should be at least 100 mm thickness (made of concrete or masonry elements with a density of not less than 450 kg/m³).

Rigid floor

The floor should be at least 150 mm thickness (made of concrete, reinforced concrete, cellular concrete, with a density of not less than 450 kg/m³).
