INTU FR FOAM 2K

Fire protection foam

Product description

The INTU FR FOAM 2K product is a two-component, polyurethane-based expanding fire protection foam.
Upon application, it reacts and increases in volume. In the event of a fire, it expands to form a barrier that prevents the spread of flames and smoke, maintaining the partition’s integrity and insulation for up to EI 120.

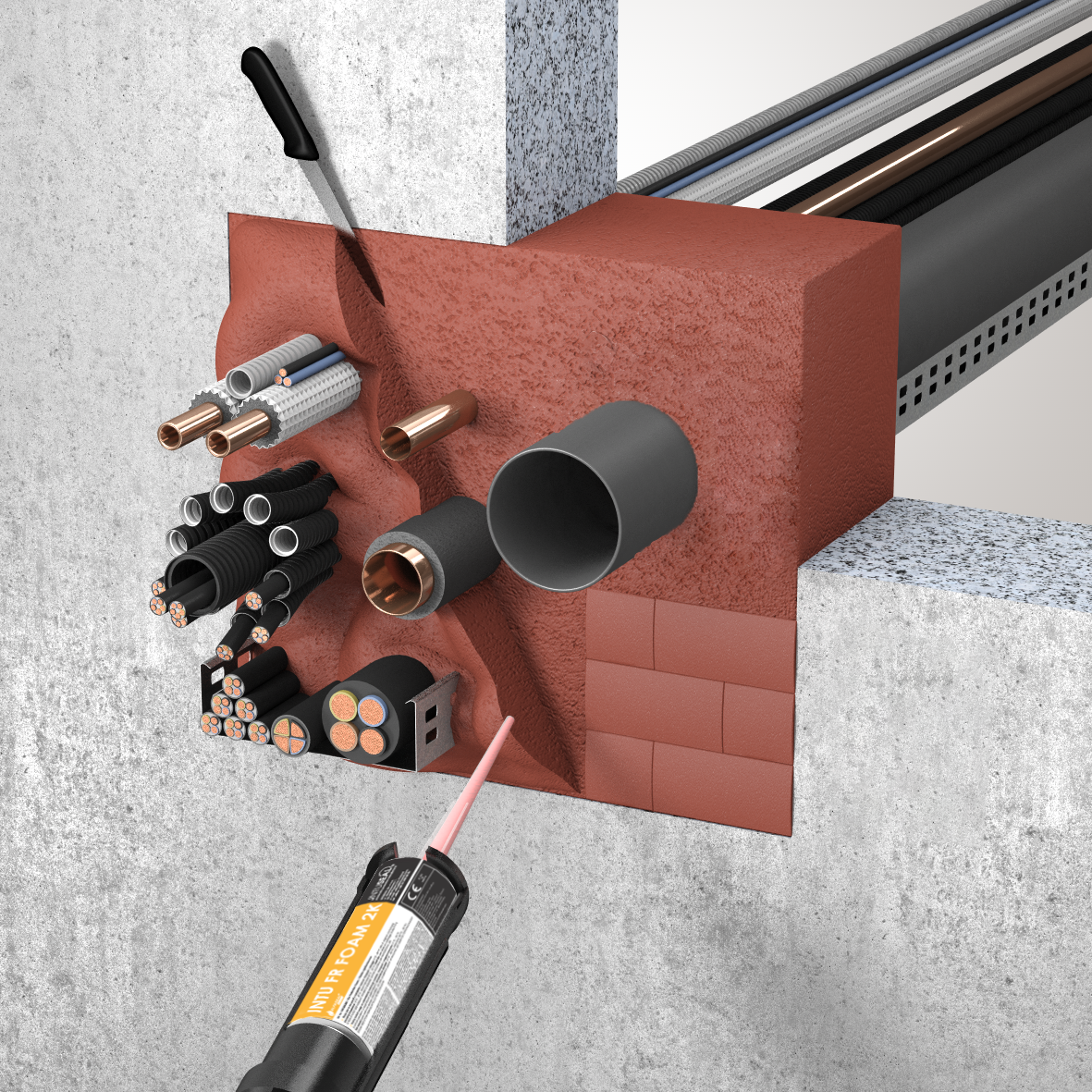

The foam INTU FR FOAM 2K is especially recommended for large cable penetrations seals. Fill the hole from the bottom up. Always position the mixing nozzle tip above the foam (according with Technical Data Sheet). Subsequently added installations can be routed through the hardened foam.

Fire resistance class up to EI 120
Cables and pipes fire protection
For walls and floors
Quick installation
High expansion factor
Acoustic insulation 66 dB

Documents

Compliance

European Technical Assessment: ETA-11/0206
Declaration of performance: DoPZZ330-20180701
Certificate of constancy of performance: 0761-CPR-0208
Acoustic insulation from airborne sounds: Rw = 66 dB

Availability

Product	Type	Delivery form	Article number	Delivery group
INTU FR FOAM 2K	380 ml cartridge	1 pc	3203800000	A

Additional product	Type	Delivery form	Article number
Foam gun 2K hand-held	–	1 pc	3401380000
Foam gun 2K ac	–	1 pc	3402380000
Mixing nozzle	–	1 pc	3403380000

Complementary product	Type	Delivery form	Article number
INTU FR BANDAGE	Roll 150 mm x 5 m	1 pc	3315050000

Application

INTU FR FOAM 2K foam is designed for protecting installation penetrations, cables (and cable support structures), cable bundles, metal pipes, plastic pipes, and Tubolit®Split copper pipe bundles.

Flexible walls

The wall should be at least 94 mm thickness (with a minimum of two gypsum boards lining both sides).

Rigid walls

The wall should be at least 100 mm thickness (made of concrete or masonry units with a density of not less than 450 kg/m³).

Rigid floors

The floors should be at least 150 mm thickness (made of concrete, reinforced concrete, cellular concrete, with a density of not less than 450 kg/m³).
